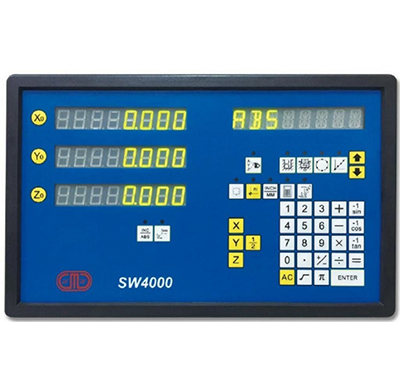

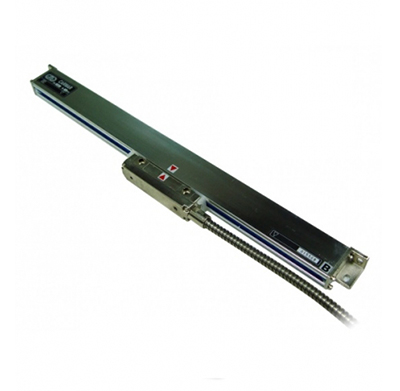

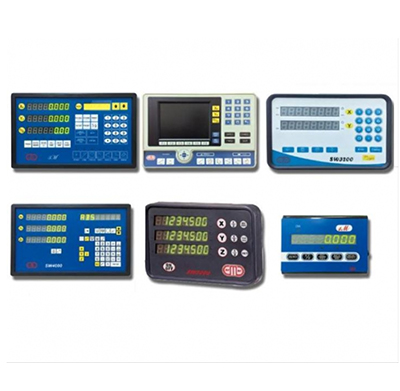

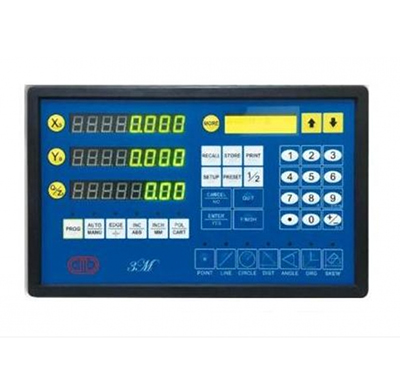

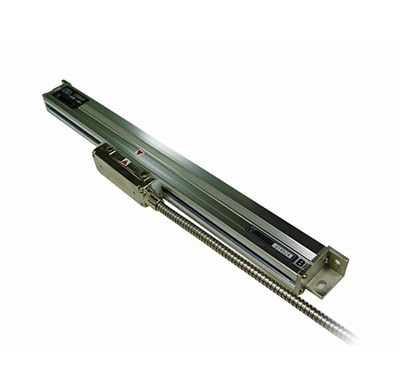

Linear Scales & DROs MAnufacturer

Name: Linear Scales & DROs
Brand: Sahil Technocrats
SKU: LSAD22/02/2023
Rating: 4.5 (5 reviews)

Hardware Specifications

1. Input voltage : DC 8V-30V , 0.08A

2. Linear scale settable resolution (mm) : 0.0001 , 0.0002 , 0.0005 , 0.001 , 0.002 , 0.005 , 0.01 , 0.02 , 0.05 , 0.1 , 0.2 , 0.5 , 1 , 5 , 10

3. Rotary encoder settable resolution (degrees) : 1 ~ 0.0001

4. Aluminum alloy body, excellent capability in EMS (2000V).

Software Functions

1. Zero setting.

2. 1/2 calculation, locate work piece center

3. mm/ inch conversion.

4. INC/ ABS conversion

5. Diameter/ Radius selection.

Solid quality of linear scale and DRO are your best choice to load on your conventional machine tool!

Adopts self-developed 24-bit IC and when resolution is 0.001mm, the speed of counter is 4m/s.
Wearproof alloy shell, which is elegant, and difficult to scratch.
Premium quality and durable panel, which is convenient to replace.
Anti-jamming capabilities of power supply and signal can be more than 2200V.
Recalls the last position after power failure without battery.
Zero clearing.
Numerical analysis
Metric units / Imperial units transfer.
Absolute coordinate / relative coordinate transfer.
Computation direction can be set.
Diameter / semi-diameter can be selected.
3 axes can be connected with linear scale or rotary encoder.
