Video/Vision Measurement Machine

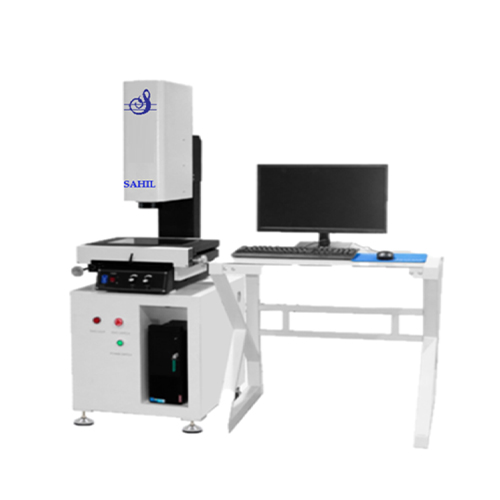

The Manual M Series Video Measuring Systems : M series with high reliability and good dynamic performance. Its dimensional measurement has met the demands of rigorous quality control departments in numerous industrial fields. Applicable to all the application fields for the purpose of two-dimensional coordinate measurement. Easy to operate and save time. Such as mobile phone, tablet computer, LED, PCB, plastic, metal stamping parts, injection molding, die cutting, electronic industry and other products of geometric size detection .

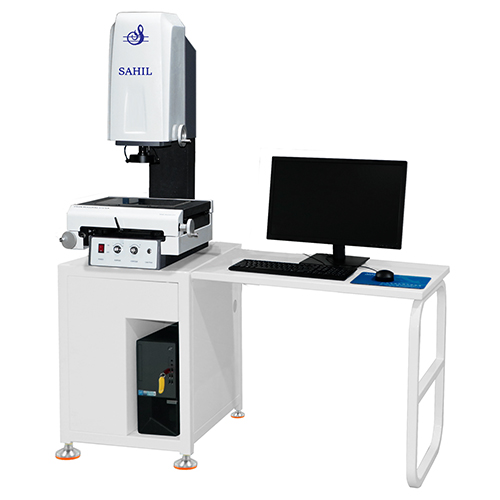

The Semi-Auto S Series Video Measuring Systems : Z axis is motorized measuring and motorized zoom lens work together to automate the movement of the system, reducing measurement time and operator discomfort. Not only that, but the multi position motorized zoom lens allows changes to the magnification to be part of the measurement program, eliminating the need for time-consuming manual changes.

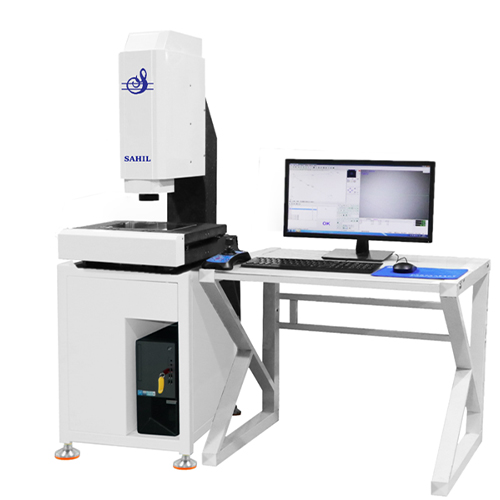

The CNC C Series Video Measuring Systems : Granite base and pillar, good stability. Moving Column type structure, measuring workpiece is fixed. High-resolution digital camera, to ensure a clear image without distortion. High-resolution motorized zoom lens, accurate doubling and one times pixel correction only needed. Brand linear scale, resolution is 0.5μm, grinding ball screw and brand servo motor etc. to ensure the precision and stability of the motion system. With programmable surface 3-ring 8- division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division.

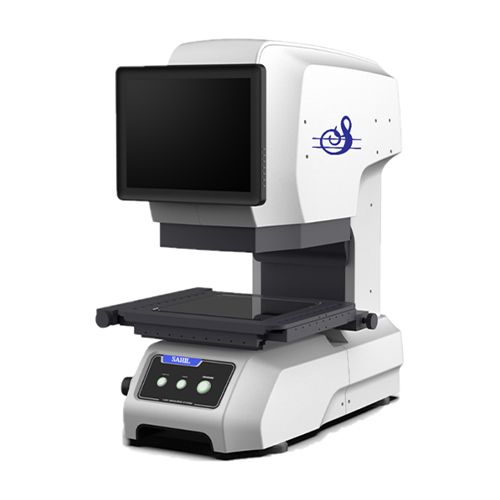

The Flash ST Series Video Measuring Systems : The ST Series are equipped with a specifically designed optical lens with a large depth of field. It can automatically bring measurement points into focus. This is useful for parts with uneven surfaces, where all of the measurement areas cannot be brought into focus at the same time.
